PHOTO GALLERY:
In attempt to show you some of our capabilities, past
projects, and to give you some ideas, we will post project pictures and video links here.
RESIDENTIAL PROJECT:

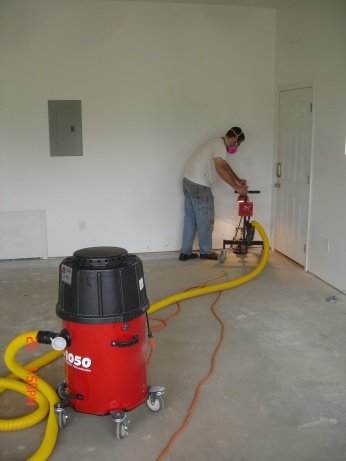

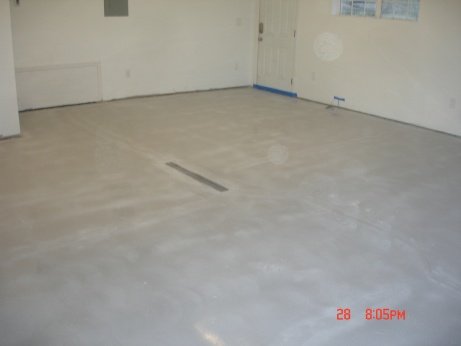

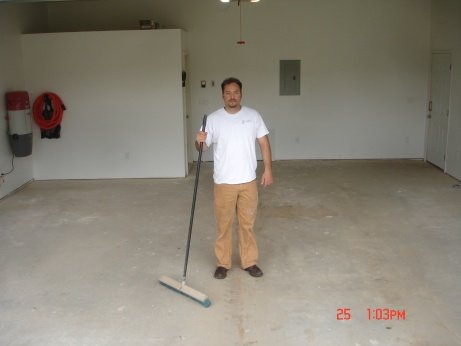

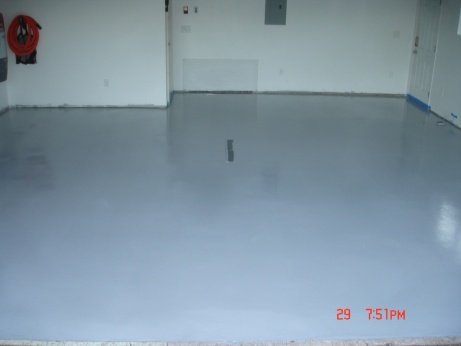

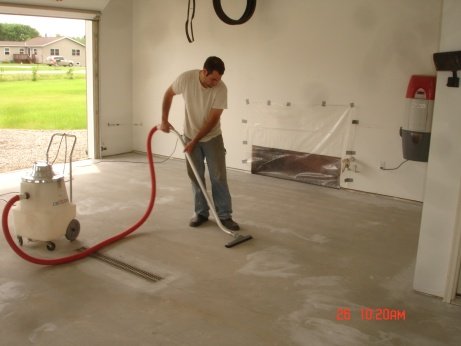

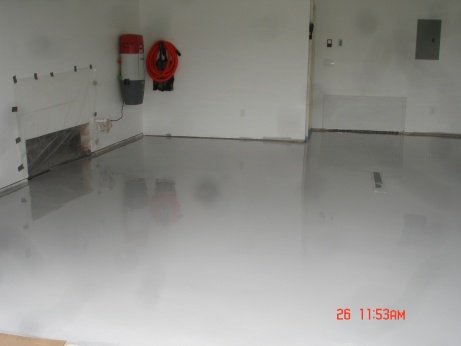

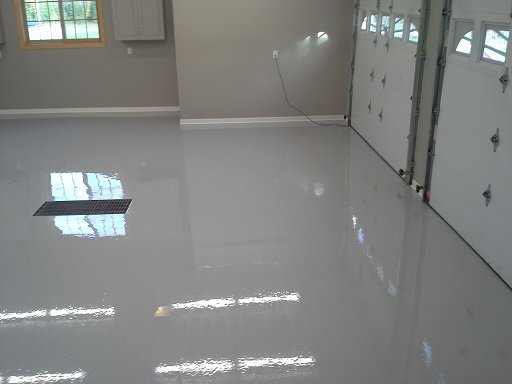

Job/Project: 2-stall residential garage with a solid color 3-coat epoxy system.
RESIDENTIAL PROJECT:

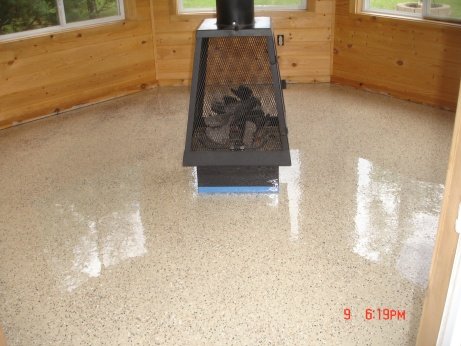

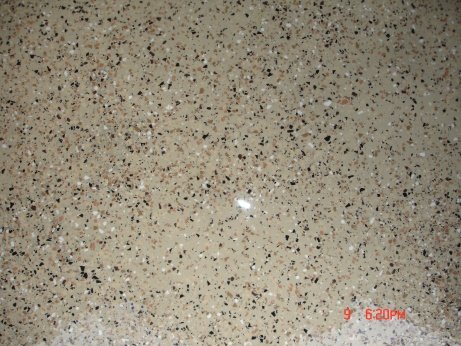

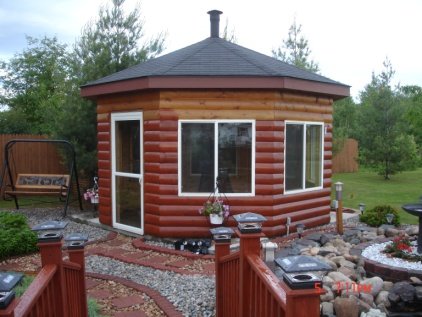

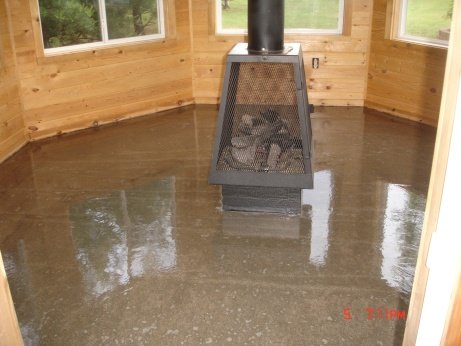

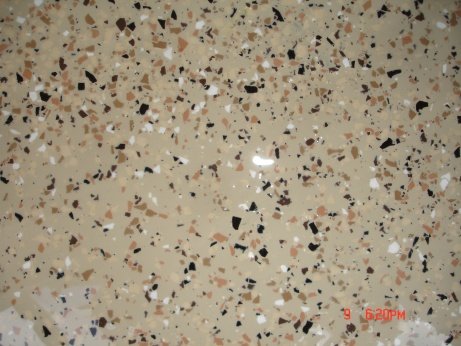

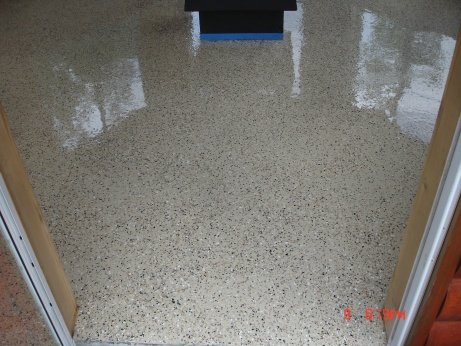

Job/Project: Gazebo "Chip Floor" (Heavy Flake, Beige Background) Location: Hibbing, Minnesota

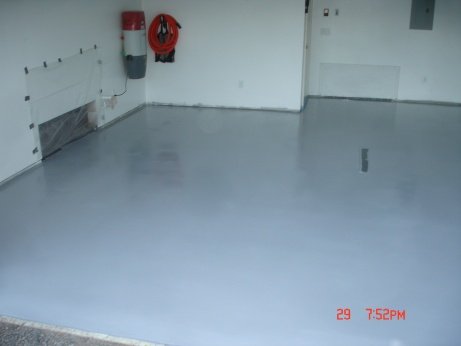

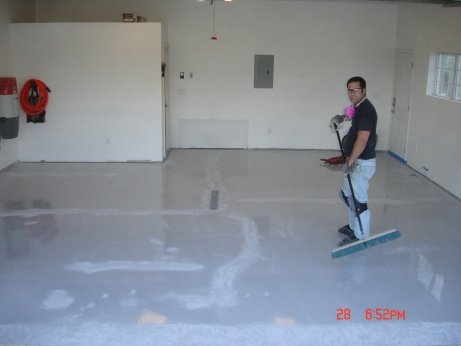

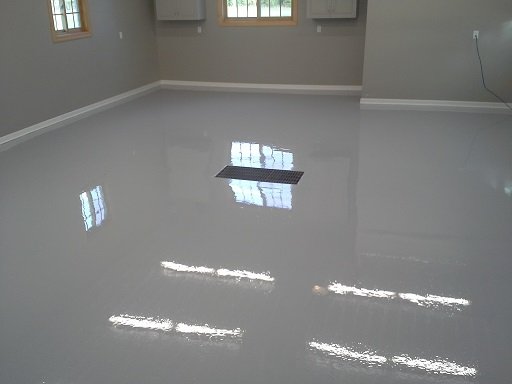

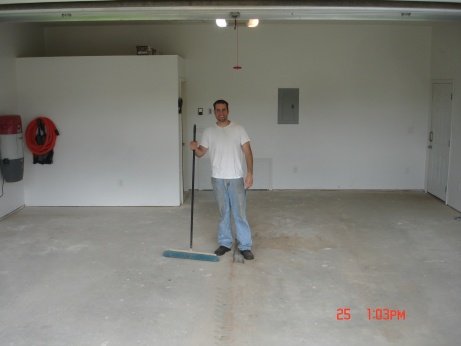

RESIDENTIAL Garage:

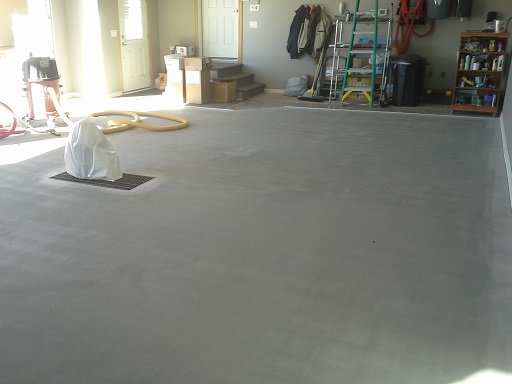

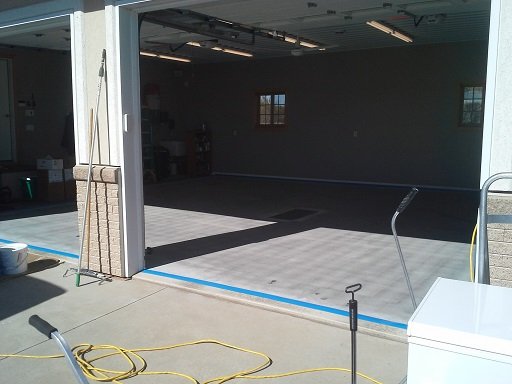

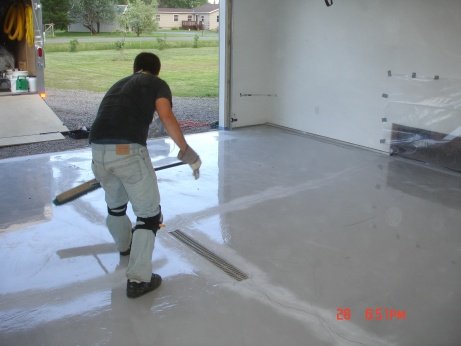

Job/Project: Garage
Floor 2 stall "Basic Floor" (White Night Grey Epoxy with Chem-Resistant
Urethane Topcoat & antiskid) Location: Hibbing,
Minnesota
INDUSTRIAL
PROJECTS:

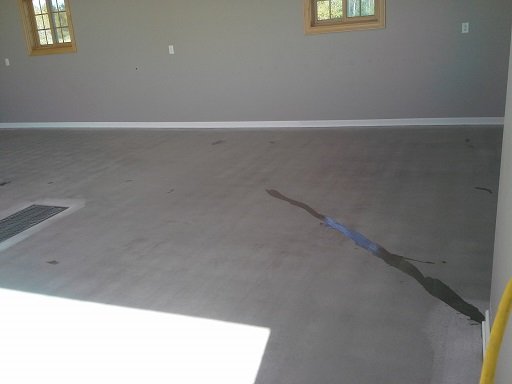

Job/Project: Concrete Floor Crack Repair Project
Location:
Irathane Systems of Hibbing, Minnesota
Description
of Job: I had to clean, prepare, fill, patch, and
structurally
repair approximately 110 linear feet of some pretty serious floor
cracking on this job. Such a repair requires some pretty
serious
preparation that involves grinding, shotblasting, vaccuuming, cleaning
with compressed air, and stitching the cracks back together using steel
bar and industrial epoxy patching compounds. I uploaded a
couple
of short videos (a 2 minute video that shows the cracks after they were
prepared and about a 1 minute video that shows the finished project.
Just click on either of the below picture captions to watch either
video:

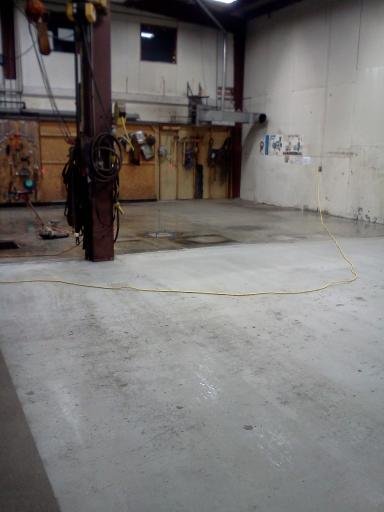

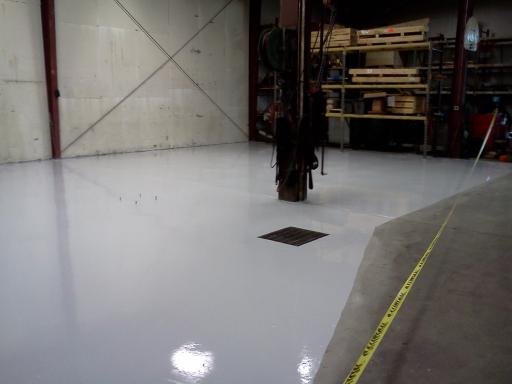

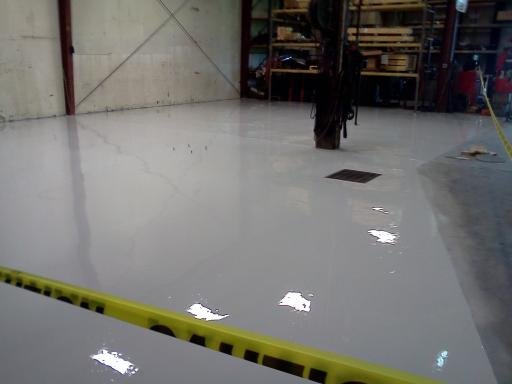

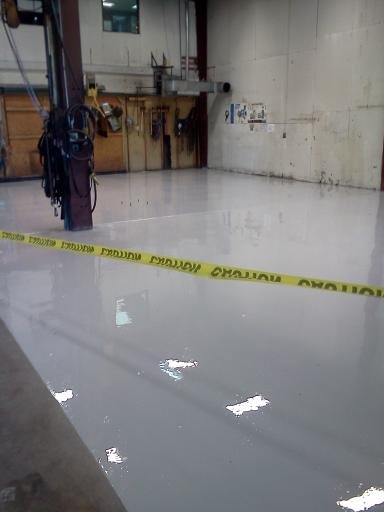

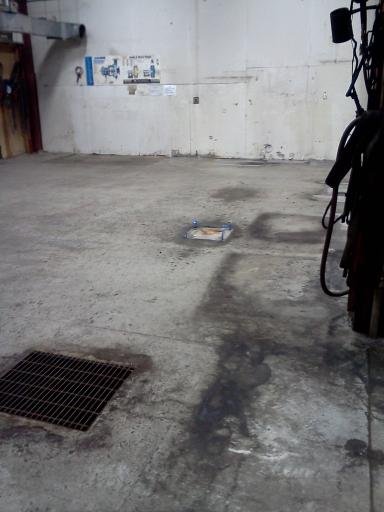

INDUSTRIAL WORKSHOP:

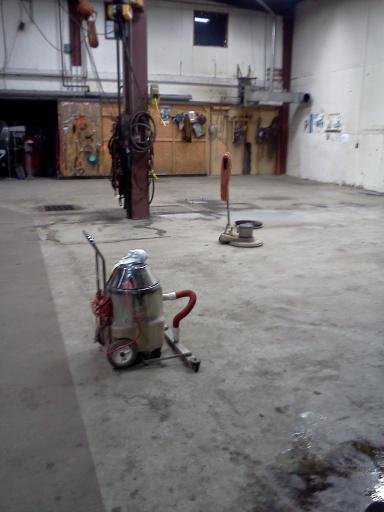

Job/Project: Clean & Prep existing workshop floor surface for new floor coating system Location: Hibbing, MN
Description
of Job: Here is an industrial workshop that was actually
previously coated a number of years ago. We degreased/cleaned it,
sanded it to create a mechanical bonding surface, and installed a
3-coat epoxy/urethane coating system.

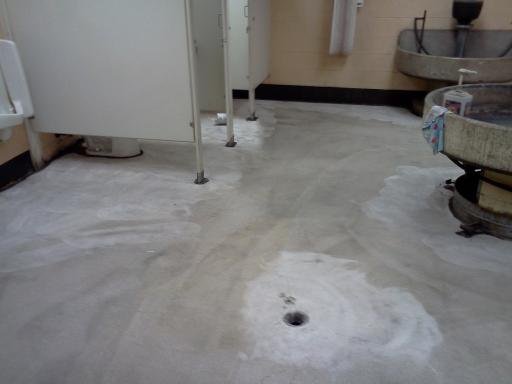

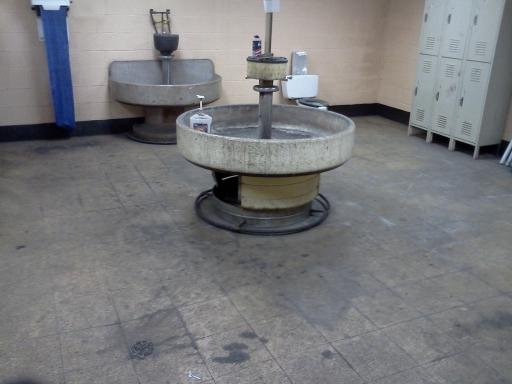

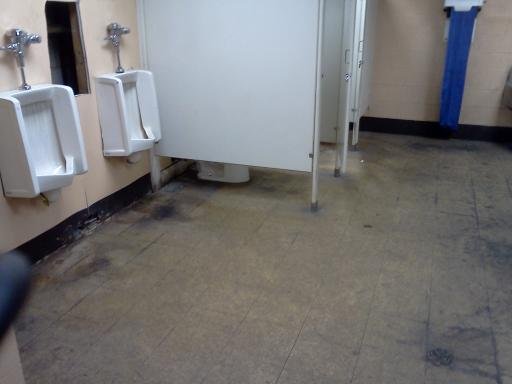

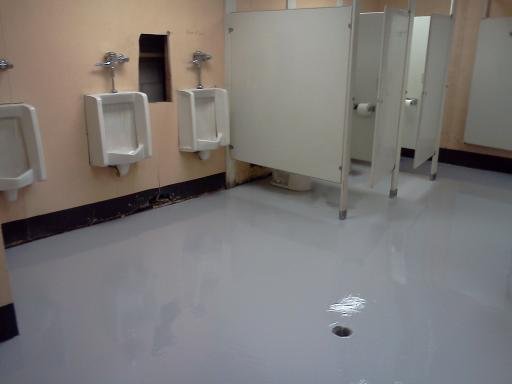

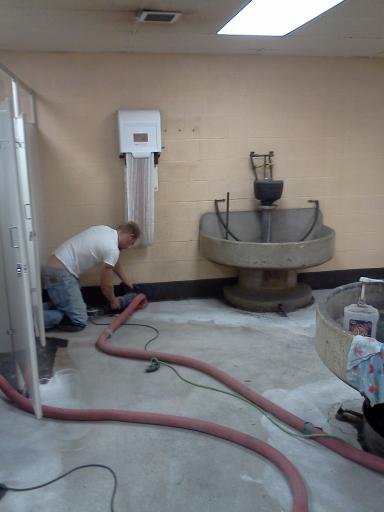

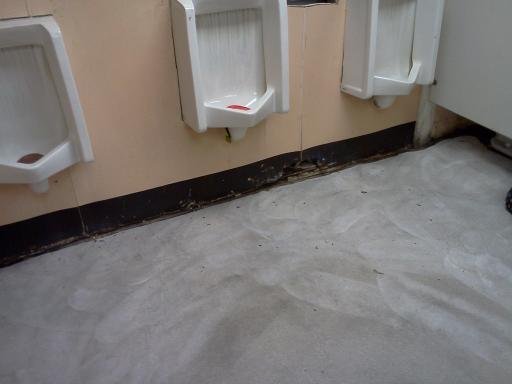

INDUSTRIAL RESTROOM / LOCKER ROOM:
Description

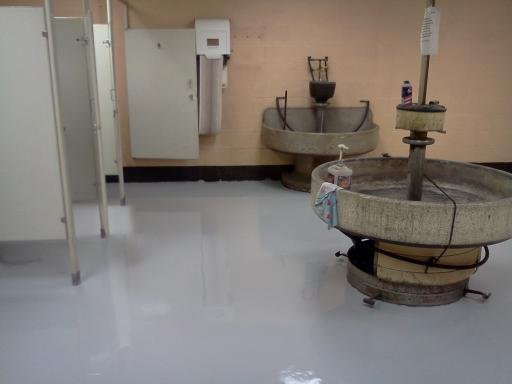

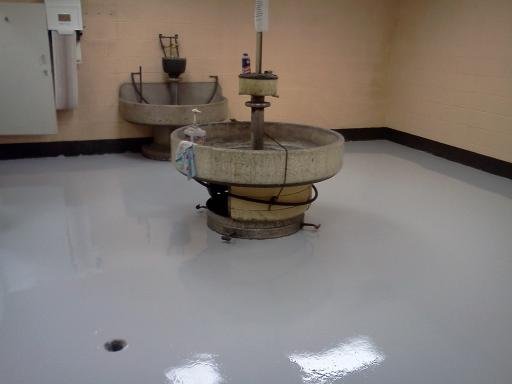

of Job: Here is an industrial bathroom project we tackled;
We removed all the old vinyl tile, diamond-ground off 2 layers of tile
adhesive, shotblasted the floor, and ground the edges. Installed
a 3 coat epoxy/urethane coating system.

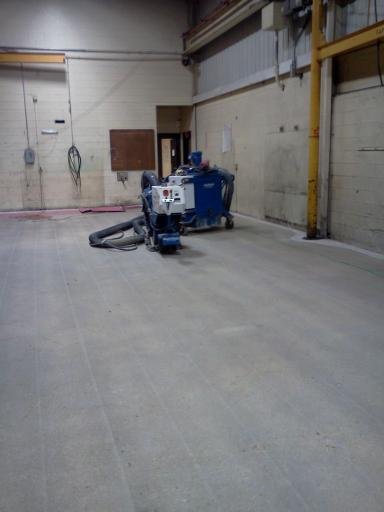

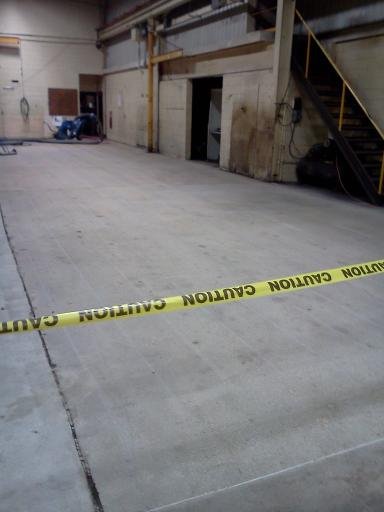

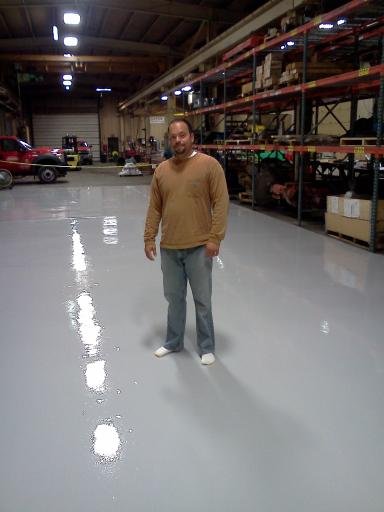

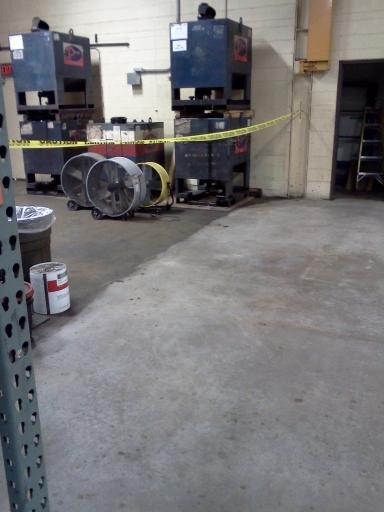

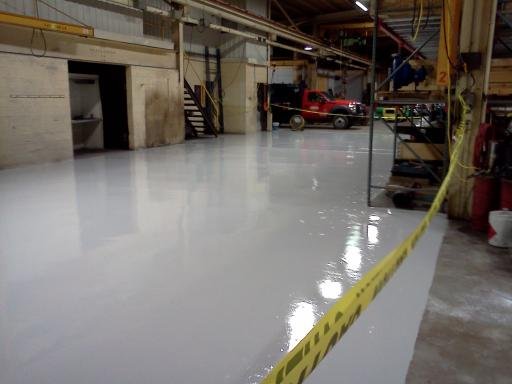

INDUSTRIAL WAREHOUSE/ MACHINE SHOP:
Description

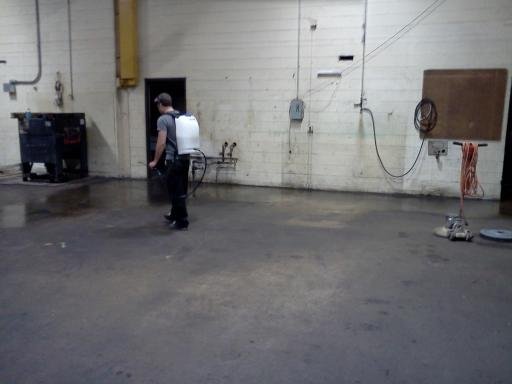

of Job: Here are pics of what was previously a machine shop
floor, but has been converted into a warehouse. The floor was
heavily saturated with decades of oil, grease, and maintenance fluids
from its machine shop days. We thoroughly degreased the floor,
then shotblasted and ground the edges to create a great bonding
surface. 3-coat system installed (2 coats of epoxy, 1 coat
of chemical resistant urethane).
You
can see the great improvement in aesthetics & lighting. The
coating also eliminates concrete dusting (air quality), and it is very
easy to mop clean.

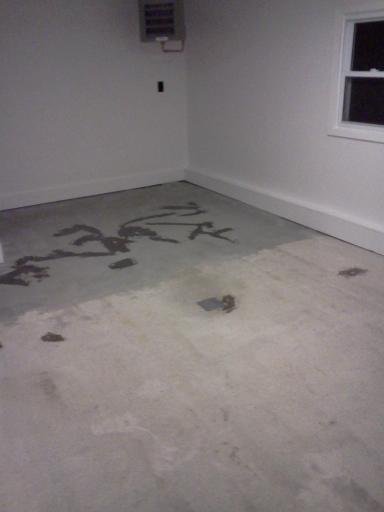

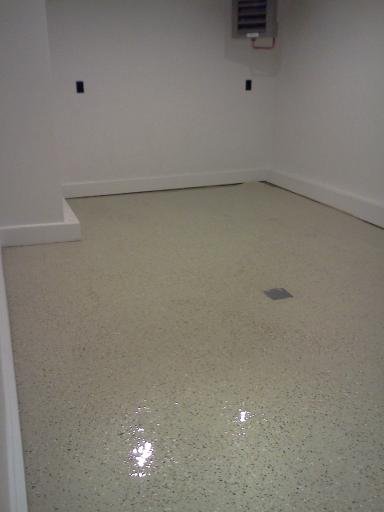

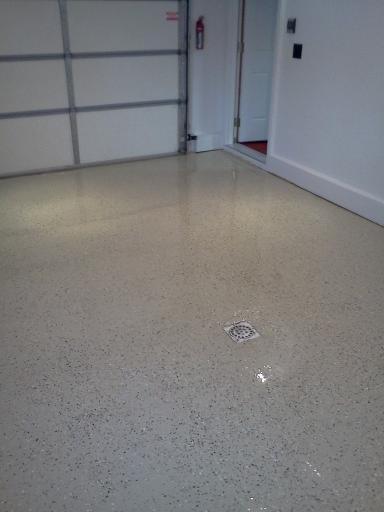

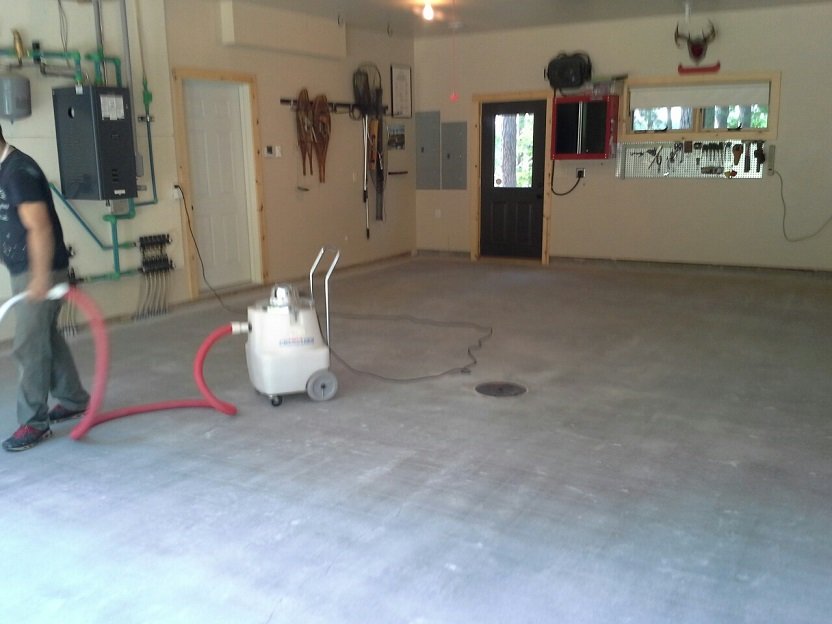

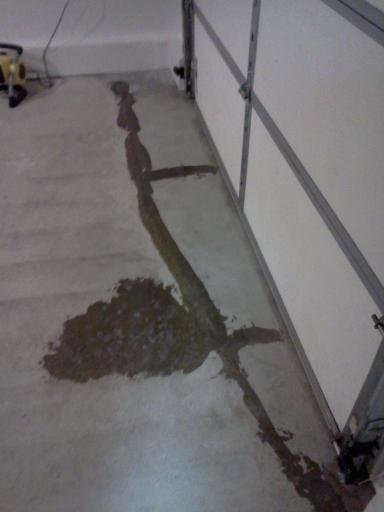

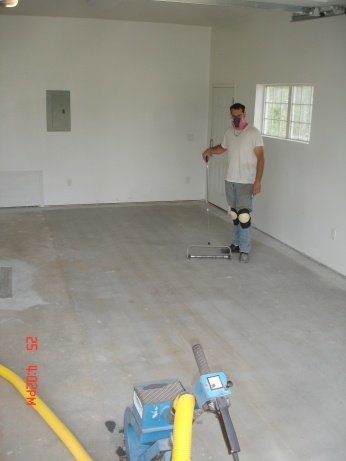

RESIDENTIAL Garage (1-stall Garage Apartment building) Hibbing, MN:

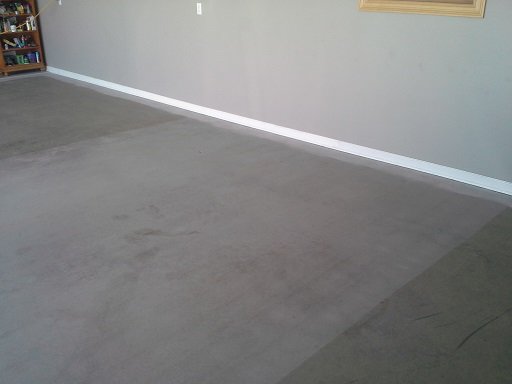

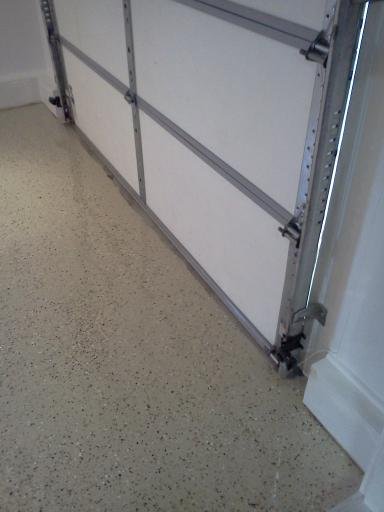

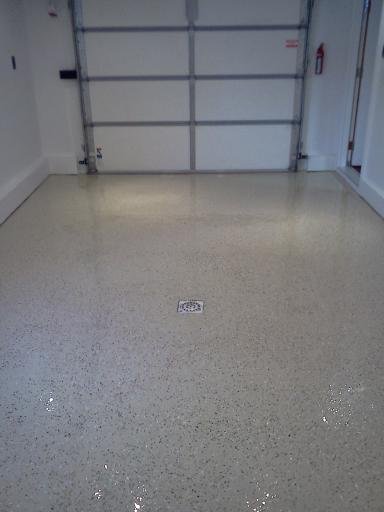

Job/Project: Clean/Shotblast/Grind
floor for appropriate surface profile, patch miscellaneous cracks.

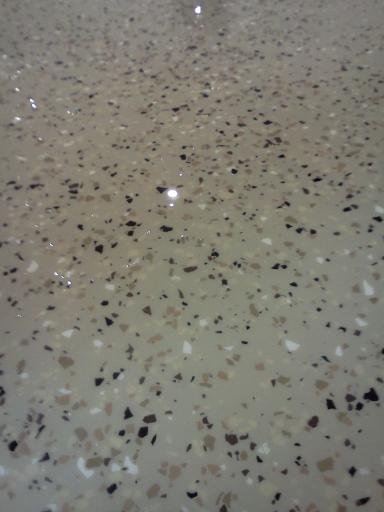

Install Partial Flake Floor; Sand Beige with Saddle Tan
Flake package. (3-coat epoxy system)

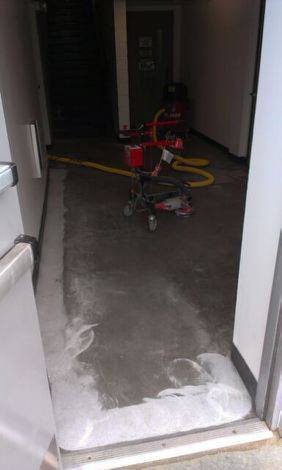

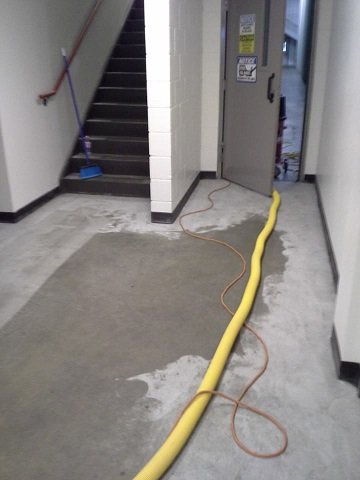

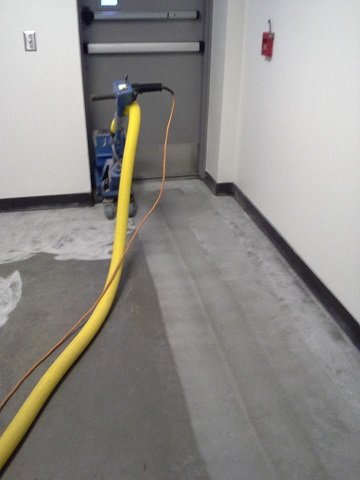

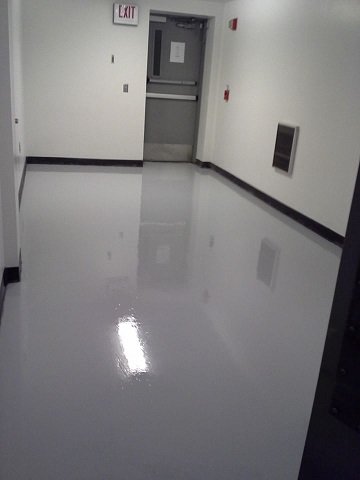

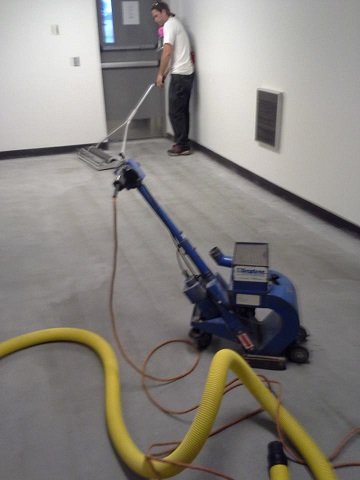

Commercial/Industrial Building, Employee Entrance Area Grand Rapids, MN:
Job/Project: Clean/Shotblast/Grind
floor for appropriate surface profile.
Install 2-coat epoxy system.

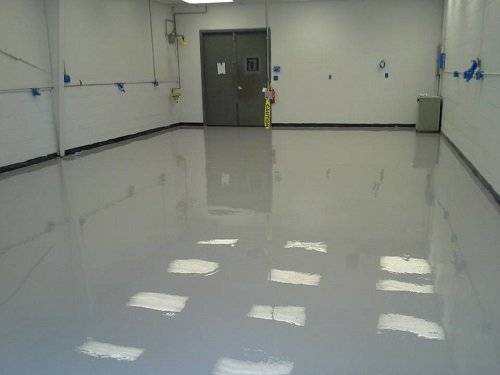

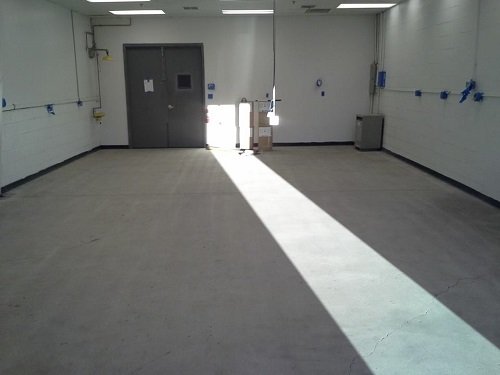

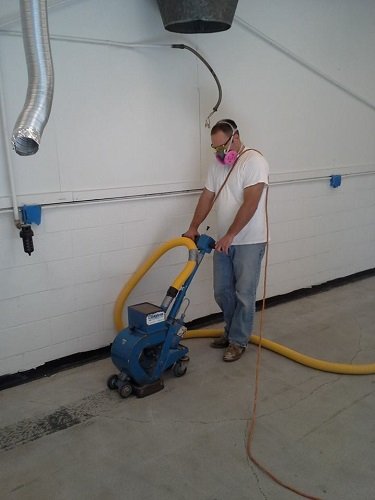

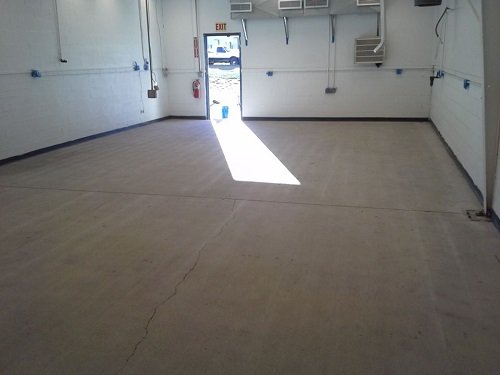

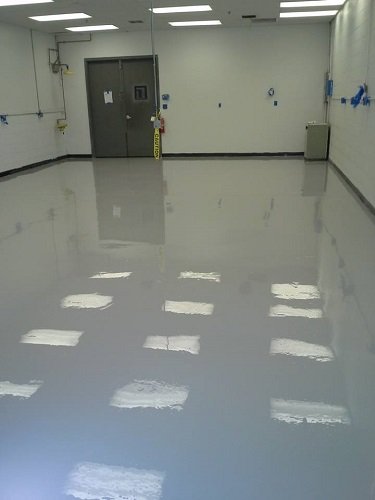

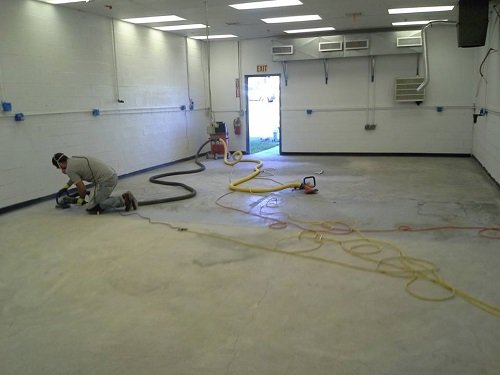

Industrial/Manufacturing R&D LAB (quality control) Hibbing, MN:

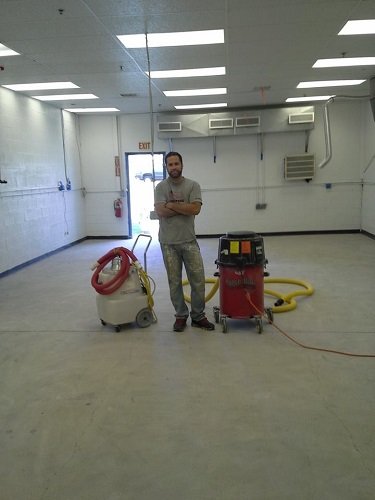

Job/Project: This
is a quality control and R&D labratory at an industrial
manufacturing facility. It was time to upgrade all equipment in
the lab, as well as refurbish the floor. The floor had previously
been covered with an inexpensive concrete floor paint which did not

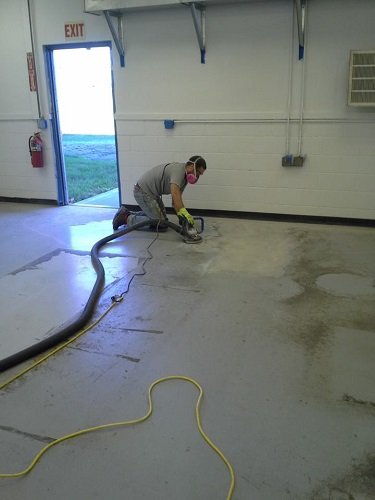

hold up. We wanted to start with a fresh pallet, so we ground all
old epoxy paint off of the floor, and then shotblasted it to give the
floor appropriate surface profile. You can see the night and day difference.
We installed a 2-coat epoxy floor system.
Residential Garage Floor; Bovey, MN:
Surface Prep & Installation of 2- Coat Epoxy Floor System (Sand Beige)
Feel free to check back here from time to time to see our latest
completed projects.
Thanks for checking out our website!!!
- Matt
